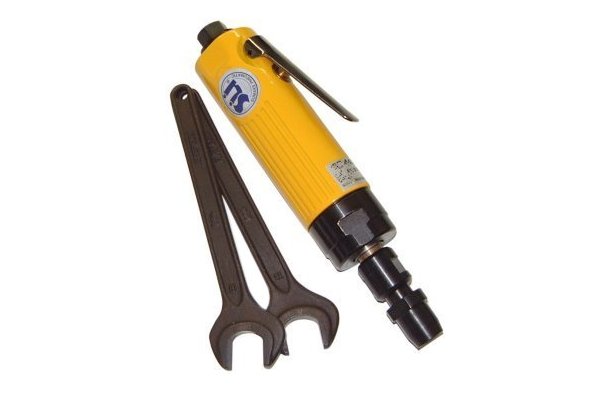

EC4 Pneumatic Evo Enamel Wire Stripper up to 5.18mm OD
The EC4 Pneumatic Evo Enamel Wire Stripper will strip many film insulations including Enamel for wire sizes from 0.28mm to 5.18mm.
EC4 Pneumatic Evo Enamel Wire Stripper:
The EC4 Enamel Wire Stripper will strip many film insulations including Enamel, Varnish, Formvar, ML etc for a range of wire sizes between 29 AWG (0.28mm O.D.) and 8 AWG (3.25mm O.D.). Using a high speed rotary stripping insert, which is precisely adjustable to match the diameter of the bare conductor, surface insulations is easily removed. The insert on the EC4 Enamel Wire Stripper is held in a special adjustable chuck assembly which, when locked in position, allows precise repetitive stripping without risk of damage to the conductor.
EC4 Enamel Wire Stripping Machine Operation – Simple Setup & Stripping Operation:
1. Loosen the Chuck Assembly with the two wrenches provided.
2. Place the Stripping Insert into the Chuck Assembly and tighten by hand.
3. Place the work piece into the insert and tighten the Chuck Assembly with the two wrenches provided so that the insert closes but the work piece can still be removed.
4. Remove the work piece and start the EC2.
5. Strip the wire by pushing into the Stripping Insert and remove to examine.
6. If the insulation is not completely removed, switch of the EC2, tighten the Chuck Assembly and repeat the Stripping Operation.
| Weight | 1 kg |
|---|---|
| Dimensions | 270 × 38 × 38 mm |
| Required Air Supply | 60-70 PSI (Oil Daily) |
| Machine Warranty | 12 Months |
Stripping Insert Selection
| Tapered Bullet | Conical Face | Flat Face |
|---|---|---|
 |  |  |
| For Stripping in confined areas | For ease of wire entry into the insert | For Stripping flush to the coil body |
| AWG | Nominal OD (mm) | Cross Section Area (mm²) | Conical Face Insert | Flat Face Insert | Tapered Bullet Insert | Slot Size (Tech Info Only) | Carbide Flat Face Insert |
|---|---|---|---|---|---|---|---|
| 29-20 | 0.28-0.81 | 0.06-0.52 | C1 (UK3341) | F1 (UK3351) | B1 (UK3361) | 0.8mm | 728C |
| 20-16 | 0.81-1.30 | 0.52-1.33 | C2 (UK3342) | F2 (UK3352) | B2 (UK3362) | 1.2mm | 732C |
| 16-14 | 1.30-1.63 | 1.33-2.09 | C3 (UK3343) | F3 (UK3353) | B3 (UK3363) | 1.6mm | 736C |
| 14-12 | 1.63-2.06 | 2.09-3.33 | C4 (UK3344) | F4 (UK3354) | B4 (UK3364) | 2.0mm | 740C |
| 12-10 | 2.06-2.59 | 3.33-5.27 | C5 (UK3345) | F5 (UK3355) | B5 (UK3365) | 2.4mm | - |
| 10-8 | 2.59-3.25 | 5.27-8.30 | C6 (UK3346) | F6 (UK3356) | - | 2.8mm | - |
| 8-6 | 3.25-4.11 | 8.30-13.30 | C7 (UK3347)** | F7 (UK3357)** | - | - | - |
| 6-4 | 4.11-5.18 | 13.30-21.10 | - | F8 (UK3358)** | - | - | - |
| **Note - To use the C7, F7 and F8 Inserts, the Larger Chuck Assembly must be purchased (UK3305) | |||||||
