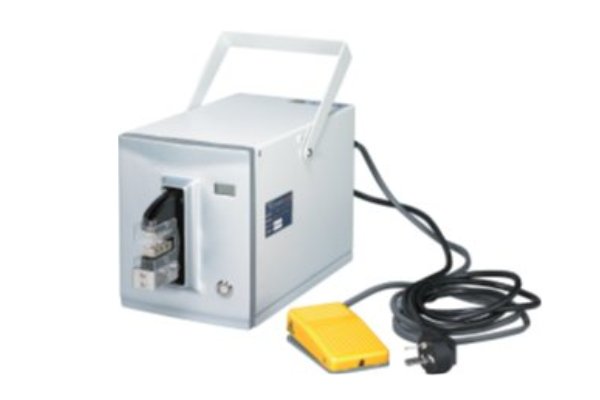

FEK-60EM Electric Crimping Machine up to 6mm² Terminals
The FEk-60EM Bench Top Electric Crimping Machine is a bench top crimper suitable for a wide range of connectors up to 6mm² (Insulated Terminals).
FEK-60EM Electric Crimping Machine:
The FEk-60EM Bench Top Electric Crimping Machine is capable of crimping a wide range of crimp terminals and connectors offering superb value for money. The FEK-60EM Electric Crimper is driven by a constant speed motor which produces high efficiency and high quality on both crimping strength and crimping speed.
This new crimping machine will accept most universal crimping die sets, this offers huge versatility and eliminates the need to buy machine specific die sets which are often costly and cannot be used in other tools.
Special crimping die sets can also be manufactured if required. The FEK-60EM Electric Crimper comes equipped with a protective guard, power cord, foot switch and operators manual.
| Weight | 9.3 kg |
|---|---|
| Dimensions | 150 × 180 × 330 mm |
| Max Crimping Range | Insulated Terminals up to 6mm² |
| Crimping Frequency | 1.5secs |
| Max Crimping Force | 15KN |
| Voltage | 220V/110V/50Hz |
| Machine Warranty | 12 Months |
Available Die Sets
The full range of Die Sets can be found in the photos above.
