KS-A230 Series of Wire Twisting Machines
The KS-A230 Series of Wire Twisting Machines are an electrically operated unit for the manufacture of twisted cables in pairs, triples, etc.
KS-A230 Series of Wire Twisting Machines:
The KS-A230 Series of Wire Twisting Machines are an electrically operated unit for the manufacture of twisted cables in pairs, triples, etc. The work piece is held in the hand at the other end and twisting is started by depressing the foot pedal which is supplied by a long reach power cord.

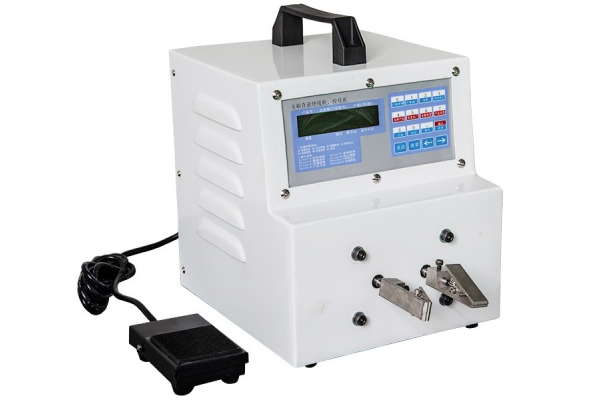

3 Different models are available in the KS-A230 Series. The A231 is the standard 1 wire twisting spindle machine, the KS-A232 has 2 wire twisting spindles (as per product photo) and the KS-A235 has 5 wire twisting spindles.
We are also able to offer a customised Wire Twisting Machine which has an additional Wire Clamp and Guiding Rail. Please contact us for more information regarding a customised Wire Twisting Machine.
As the KS-A230 Series of Wire Twisting Machines adopts an LCD Display, this machine is easy to program. 99 sets of programs can be stored in the memory settings of these machines for future usage.
Features:
Clockwise & Anti-Clockwise Twisting
Fast Start
Low Noise
High Operation Speed
| Model Number | KS-A231 | KS-A232 | KS-A235 |
|---|---|---|---|
| Wire Holders | 1 | 2 | 5 |
| Rotating Speed | 300-5500rpm | 300-5500rpm | 300-5500rpm |
| Available Wire Size | 1.2mm - Other sizes are available on request | ||
| Twisting Direction | Clockwise & Anti-Clockwise | ||
| Twisting Mode | Max 20 Sets | Max 20 Sets | Max 20 Sets |
| Twisting Cycle | 1-9999 | 1-9999 | 1-9999 |
| Memory Function | 99 | 99 | 99 |
| Slow Starting Mode | 9 Sets | 9 Sets | 9 Sets |
| Display | LCD Screen | LCD Screen | LCD Screen |
| Power Supply | 220v/50Hz (110v/60Hz available on request) | ||
| Power Rating | 100W | 100W | 100W |
| Net Weight | 15Kgs | 18Kgs | 22Kgs |
| Dimensions | 220 x 240 x 240mm | 220 x 240 x 240mm | 220 x 240 x 240mm |
| Machine Warranty | 12 Months | 12 Months | 12 Months |
