KS Bench Top Cut & Strip Machines with Additional Functions
This range of Cut & Strip Machines are easy to program and fast to setup with no change of tooling required other than the guide tube.
KS Bench Top Wire Cut & Strip Machines with Additional Functions
This range of Wire Cut & Strip Machines are easy to program via menu driven software and an LCD display and is fast to setup with no change of tooling required other than the guide tube. Up to 99 different cutting and stripping programs can be stored making these machines suitable for a very wide range of applications. It offers a high level of accuracy +/- 0.002 x length and is fast, able to cut and strip up to 8000pcs/hour depending on which machine is required.
Models available with Additional Functions are as follows:

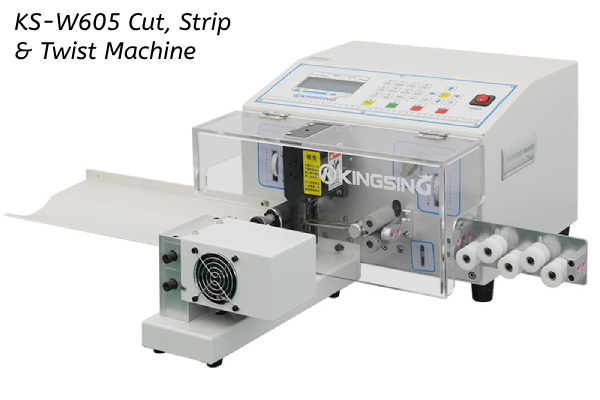

- KS-W605 Cut, Strip & Twist Machine

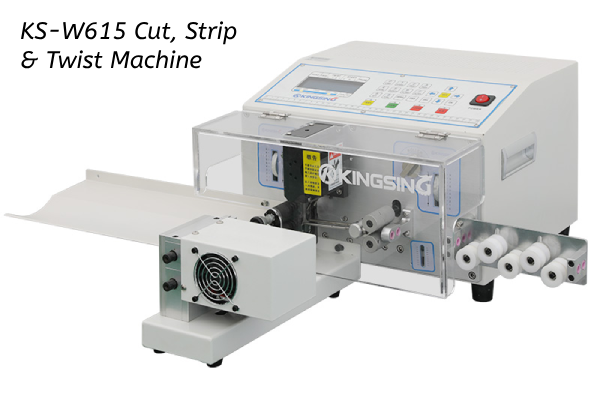

- KS-W615 Cut, Strip & Twist Machine

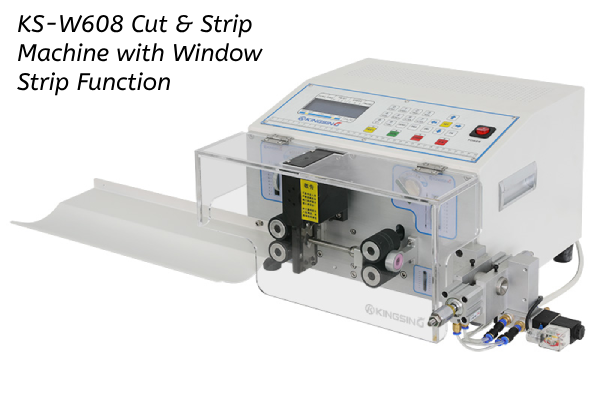

- KS-W608 Cut & Strip Machine with Window Stripping Function

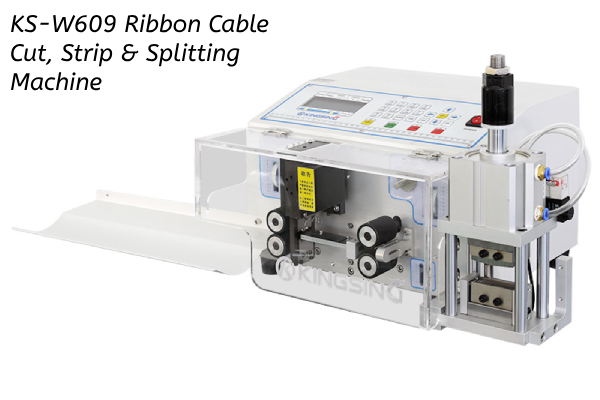

- KS-W609 Ribbon Cable Cut, Strip & Splitting Machine

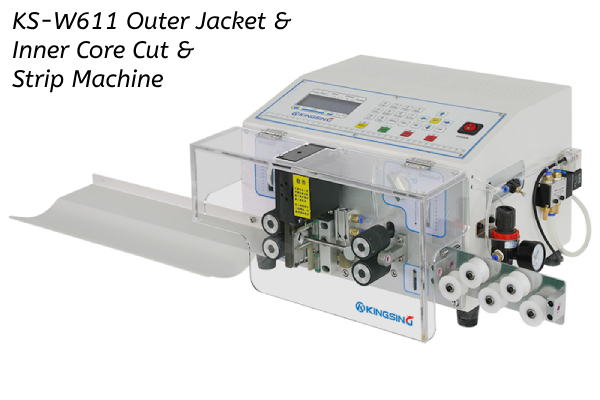

- KS-W611 Outer Jacket and Inner Core Cut & Strip Machine
Series 4 would be more than happy to trial your wire samples on any of the Cut & Strip Machines listed (stock dependant), please contact sales@series4.co.uk for more information.
Machine Specifications
| Model Number | KS-W605 | KS-W615 | KS-W608 | KS-W609 | KS-W611 |
|---|---|---|---|---|---|
| Machine Type | Standard Wire Cut, Strip & Twist | Standard Wire Cut, Strip & Twist | Cut & Strip with Window Strip Function | Ribbon Cable Cut, Strip & Split | Outer Jacket & Inner Core Cut & Strip |
| Max Cable Size | 2 Wires x Approx. 2.5mm OD | 2 Wires x Approx. 3mm OD | Approx. 6mm OD (0.1-10mm², 7-28AWG) | 30mm Width | Approx. 6.5mm OD |
| Max Number of Cores | - | - | - | - | 6 |
| Stripping Lengths | Leading End: 0-30mm Trailing End: 0-30mm | Leading End: 0-30mm Trailing End: 0-30mm | Leading End: 0-35mm Trailing End: 0-35mm | Leading End: 0-30mm Trailing End: 0-30mm | As Below |
| Outer Jacket Strip Length | - | - | - | - | Leading End: 0-120mm Trailing End: 0-35mm |
| Inner Core Strip Length | - | - | - | - | Leading End: 0-30mm Trailing End: 0-15mm |
| Cutting Lengths | 0.1-99999mm | 0.1-100000mm | 0.1-100000mm | 0.1-100000mm | 0.1-100000mm |
| Cutting & Stripping Tolerance | +/- 0.002mm x Length | +/- 0.002mm x Length | +/- 0.002mm x Length | +/- 0.002mm x Length | +/- 0.002mm x Length |
| Max Middle Strip Sections | - | - | 15 Sections | - | - |
| Memory Function | 100 Programs | 100 Programs | 100 Programs | 100 Programs | 100 Programs |
| Production/Speed | 5000pcs/hour | 5000-8000pcs/hour | 5000-8000pcs/hour | 3000-5000pcs/hour | |
| Drive Mode | 4 Wheel Drive | 4 Wheel Drive | 4 Wheel Drive | 4 Wheel Drive | 4 Wheel Drive |
| Blade Material | Hard Tungsten Steel | Hard Tungsten Steel | Hard Tungsten Steel | Hard Tungsten Steel | Hard Tungsten Steel |
| Display | LCD Display | LCD Display | LCD Display | LCD Display | LCD Display |
| Power Rating | 430W | 430W | 430W | 430W | 430W |
| Voltage | 220V/50Hz (110V/60Hz on request) | 220V/50Hz (110V/60Hz on request) | 220V/50Hz (110V/60Hz on request) | 220V/50Hz (110V/60Hz on request) | 220V/50Hz (110V/60Hz on request) 0.4-0.6Mpa Air Pressure Required |
| Weight | 38Kgs | 32Kgs | 28Kgs | 33Kgs | 35Kgs |
| Dimensions | 590 x 450 x 1050mm | 590 x 450 x 1050mm | 400 x 410 x 280mm | 400 x 410 x 280mm | 400 x 410 x 280mm |
| Machine Warranty | 12 Months | 12 Months | 12 Months | 12 Months | 12 Months |
