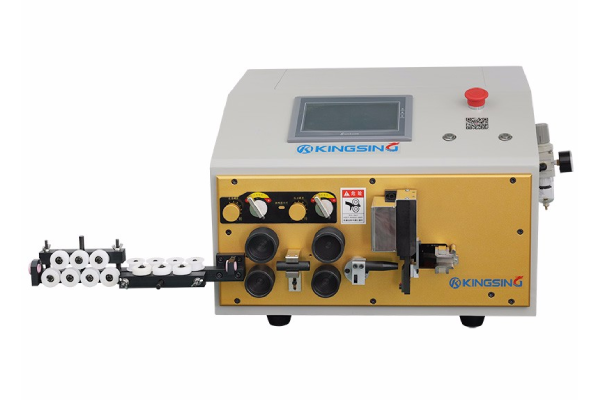

KS-W01* Series of Cut, Strip & Bend Machines
The KS-W01 Series of Cut, Strip & Bend Machines are designed for processing BV Wire up to 35mm² with Stripping Lengths up to 100mm.
Call for Price
Description
Machine Specifications
Product Video
KS-W01 Series of Cut, Strip & Bend Machines:
The KS-W01 Series of Cut, Strip & Bend Machines are designed for processing BV Wire. This series of Cut, Strip and Bending Machines not only cuts and strips the wires, it can also bend the wire into any angle in a 2D plane.
Thanks to the new optimized bending mechanism being further away from the cutting unit, there is less space constraints on the shape that can be bent.
Machine Specifications
| Model Number | KS-W010 | KS-W011 | KS-W012 | KS-W013 |
|---|---|---|---|---|
| Available Wire Size | 0.1-6mm² | 1.5-16mm² | 0.1-25mm² | 4-35mm² |
| Max Cutting Length | 99999.9mm | 100m | 99999.9mm | 100m |
| Stripping Lengths | Leading End: 0-80mm Trailing End: 0-30mm | Leading & Trailing End: 0-50mm | Leading End: 0-80mm Trailing End: 0-30mm | Leading End: 0-100mm Trailing End: 0-25mm |
| Max Bending Sections | 10 | 20 | 10 | 20 |
| Drive Mode | 2 Roller Drive | 4 Roller Drive | 6 Roller Drive | 6 Roller Drive |
| Program Memory | 100 Programs | 200 | 100 | 200 |
| Power Supply | 220V, 50/60Hz | 220V, 50/60Hz | 220V, 50/60Hz | 220V, 50/60Hz |
| Power Rating | 300W | 650W | 800W | 800W |
| Required Air Supply | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa |
| Net Weight | 35Kgs | 63Kgs | 55Kgs | 95Kgs |
| Dimensions | 530 x 470 x 310mm | 600 x 550 x 450mm | 600 x 550 x 450mm | 600 x 550 x 450mm |
| Machine Warranty | 12 Months | 12 Months | 12 Months | 12 Months |
